Universal Drill Guide – 45° & 90° Precision Drilling Jig | 3D Printed Woodworking Tool

Achieve accurate, consistent drilling every time with our Universal 45° & 90° Drill Guide! 🛠️

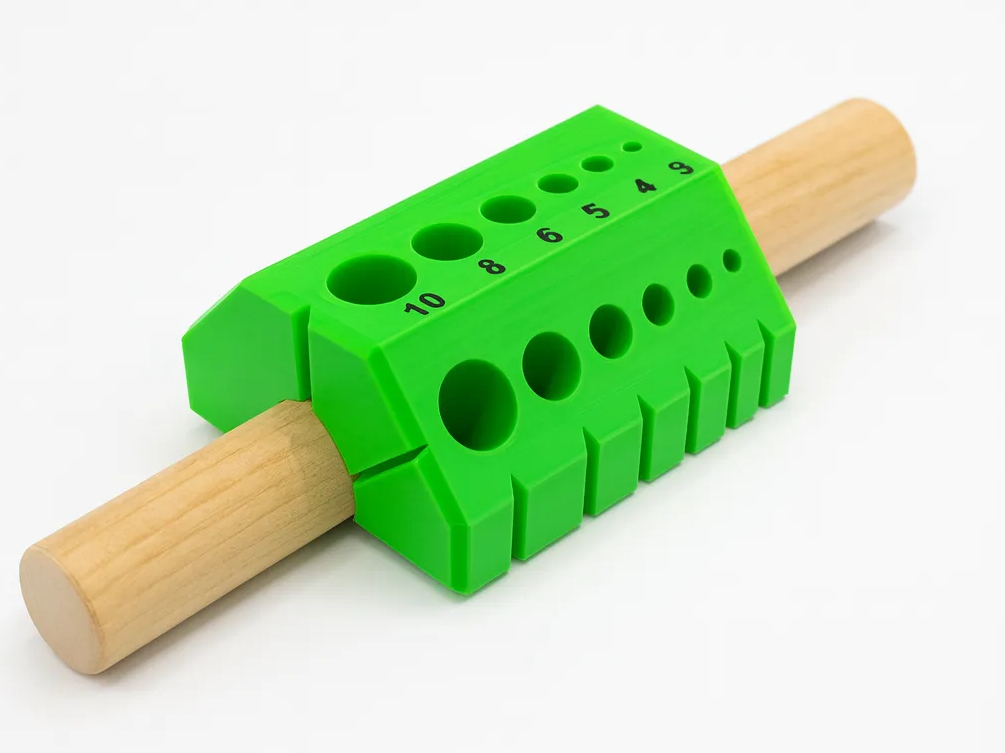

Take the guesswork out of drilling with this practical and versatile 3D printed Universal Drill Guide, designed to help you achieve precise hole alignment at both 45° and 90° angles.

Whether you're working on woodworking projects, furniture assembly, model making or general DIY repairs, this handy tool helps you drill with greater confidence and consistency.

Featuring six clearly marked metric drill guide sizes, the jig makes it easy to select the correct hole for your project without unnecessary measuring or complicated setups.

Its clever dual-angle design allows it to be positioned on both flat and rounded surfaces, making it ideal for a wide variety of drilling applications.

Compact, lightweight and easy to use, this versatile guide is a useful addition to any workshop or toolbox.

🔧 Key Features

• 45° & 90° Drilling Angles: Designed to help guide drill bits accurately for straight and angled holes.

• Six Metric Drill Sizes: Includes clearly labelled guide holes for 3 mm, 4 mm, 5 mm, 6 mm, 8 mm and 10 mm drill bits.

• Universal Design: Suitable for drilling applications involving wood, plastic and suitable soft metals.

• Flat & Rounded Surface Compatibility: Designed to help position the guide on different workpiece shapes.

• Precision Hole Alignment: Helps reduce drill bit wandering and improve consistency.

• Durable 3D Printed Construction: Lightweight yet robust for everyday workshop use.

• Compact & Portable: Easy to store in your toolbox or carry between projects.

• Simple to Use: Ideal for beginners, hobbyists and experienced tradespeople.

🪚 Ideal For

• Woodworking and carpentry

• Furniture making and assembly

• Dowel joint drilling

• 45° angled joints

• 90° perpendicular drilling

• Pilot hole preparation

• Model making and hobby projects

• Home improvements and DIY repairs

• Workshop and garage use

📏 Product Specifications

Product: Universal Precision Drill Guide
Drilling Angles: 45° and 90°
Guide Hole Sizes: 3, 4, 5, 6, 8 and 10 mm
Manufacturing Method: 3D Printing
Applications: Woodworking, DIY, model making and general drilling
Brand: Crafted 3D Treasures Ltd (C3DT)

Please note: This is a drilling alignment guide, not a powered drilling tool. Always secure your workpiece, use suitable drill bits and operate at appropriate speeds. When drilling harder materials, additional care may be required to prevent heat or wear affecting the 3D printed guide.

Due to the 3D printing process, minor layer lines and slight surface variations may be visible. These do not normally affect the intended use of the product.

Drill Smarter, Not Harder!

Whether you're creating precise dowel joints, drilling angled holes or tackling your next DIY project, the Universal Drill Guide makes accurate drilling easier and more convenient.

A practical, versatile workshop accessory designed to help you achieve professional-looking results without expensive specialist equipment.

Crafted 3D Treasures Ltd – Bringing Imagination to Life!
